本页面所涉及的产品图片及产品介绍信息仅供参考,产品因变动而与本页面不符之处,恕不另行通知,请以实物为准。
![](/images/editor/image/20200427101468956895.jpg)
![](/images/editor/image/20200427101481428142.jpg)
![](/images/editor/image/20200427101418811881.jpg)
![](/images/editor/image/20200427101430983098.jpg)
![](/images/editor/image/2020042710140576576.jpg)
![](/images/editor/image/20200427101451725172.jpg)
![](/images/editor/image/20200427101445204520.jpg)
![](/images/editor/image/20200427101452315231.jpg)
![](/images/editor/image/20200427101483478347.jpg)

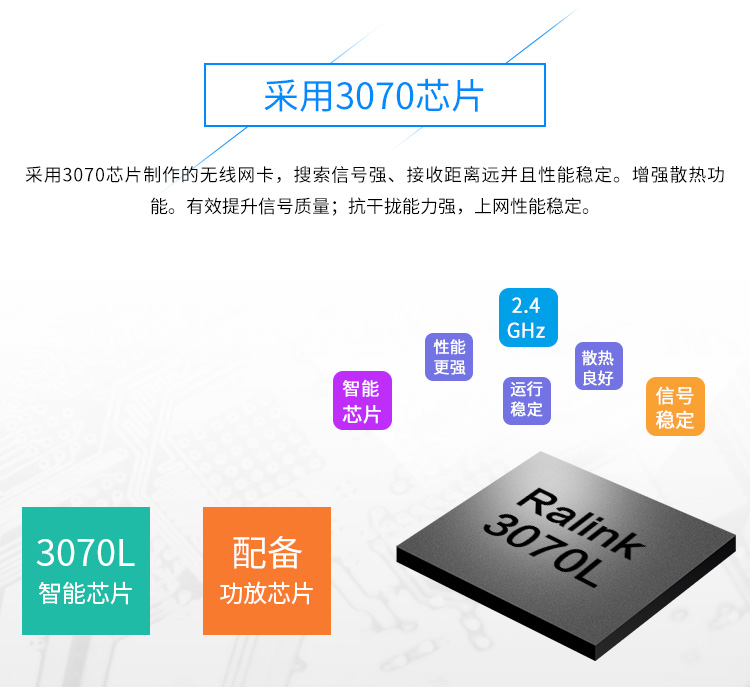

芯片名称: |
Ralink RT3070 |
|
接口类型: |
USB2.0/1.1, type A |
|
协议标准: |
IEEE 802.11n;IEEE 802.11g ;IEEE 802.11b |
|
传输速率: |
11b: Up to 11Mbps(动态)11g: Up to 54Mbps(动态)11n: Up to 150Mbps(动态) |
|
工作频率范围: |
2.4-2.4835GHz |
|
射频范围: |
25dBm(最大值) |
|
调制类型: |
OFDM/CCK/16-QAM/64-QAM |
|
灵敏度@PER: |
130M: -68dBm@10% PER |
|
工作模式: |
对等式(Ad-Hoc) |
|
无线安全设置: |
64/128 bit WEP |
|
操作系统: |
Windows CE/2000/XP/Vista/win7/win8; Linux 2.6.X;Mac OS X |
|
天线类型 : |
18dBi高增益平板天线 |
|
电压范围: |
DC 5.0V±5%,<130mA |
|
认证机构: |
CE ROHS |
|
工作温度: | -20°C~60°C (-4°F~140°F) | |
储存温度: |
-40 C~70 C (-40℉~158℉) |
|
工作湿度: |
10%--- 90% RH 无冷凝 |
|
存储湿度: |
5%~95% 无冷凝 |
|
USB线长度: | 10m | |
规格尺寸 |
218*178*38mm |
